The key to a stable shot peening process lies in maintaining consistent shot peening pressure and flow rate. As the core system of the shot peening equipment, the shot peening generation system features a pressure stabilization function that ensures stable shot flow within two seconds, guaranteeing accurate cycle timing. This enables continuous delivery of shot media to the nozzle at stable pressure and flow, and allows the use of blast hoses longer than 3 meters without compromising productivity.

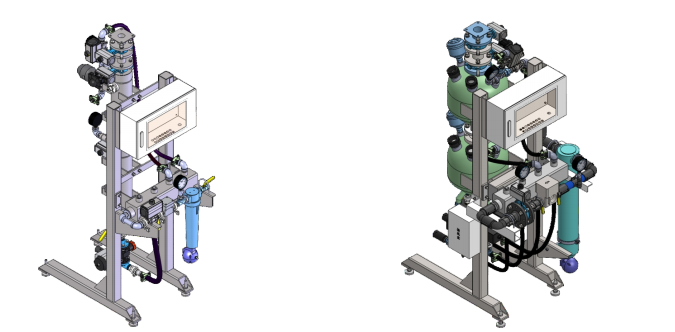

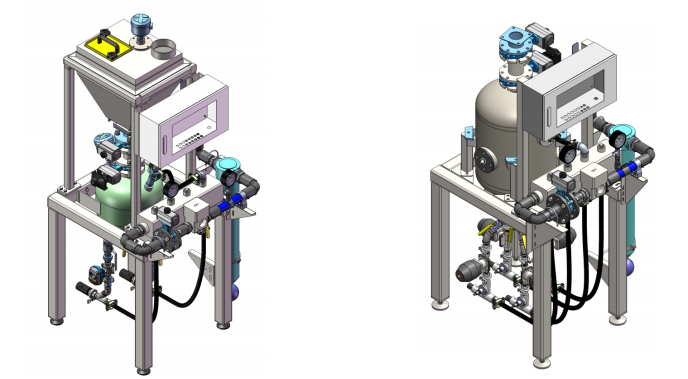

Abrasive media is fed into the shot peening generation system through the feed flange. Compressed air is introduced from an external air receiver (surge tank), which maintains stable pressure throughout the system. The mixture of compressed air and abrasive is discharged through the hose connector, and an external spray gun assembly is connected to perform the shot peening operation.

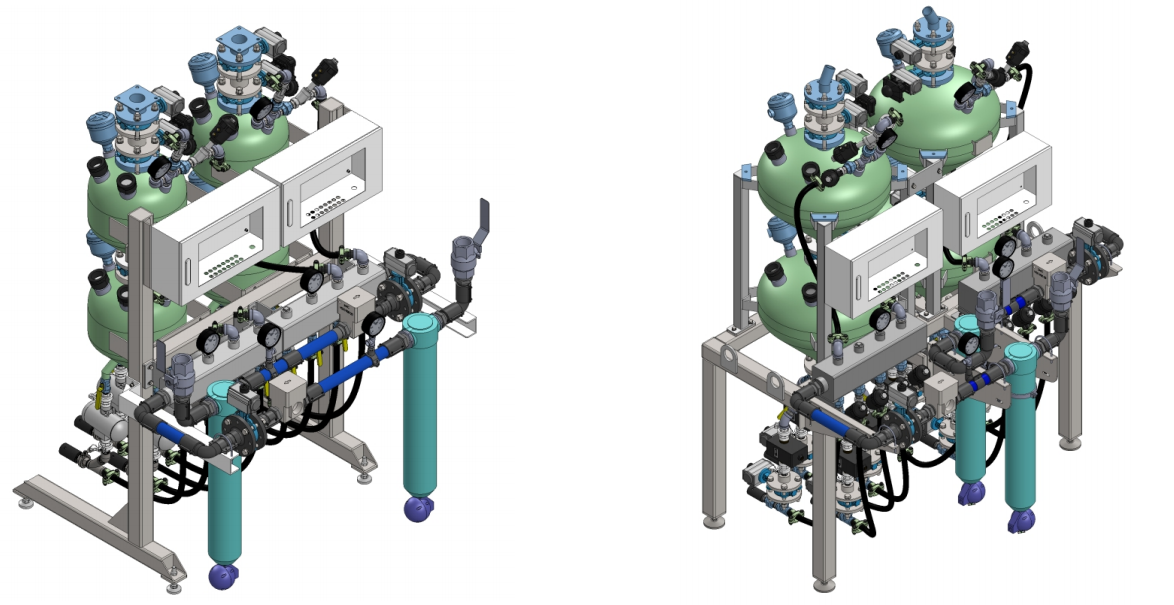

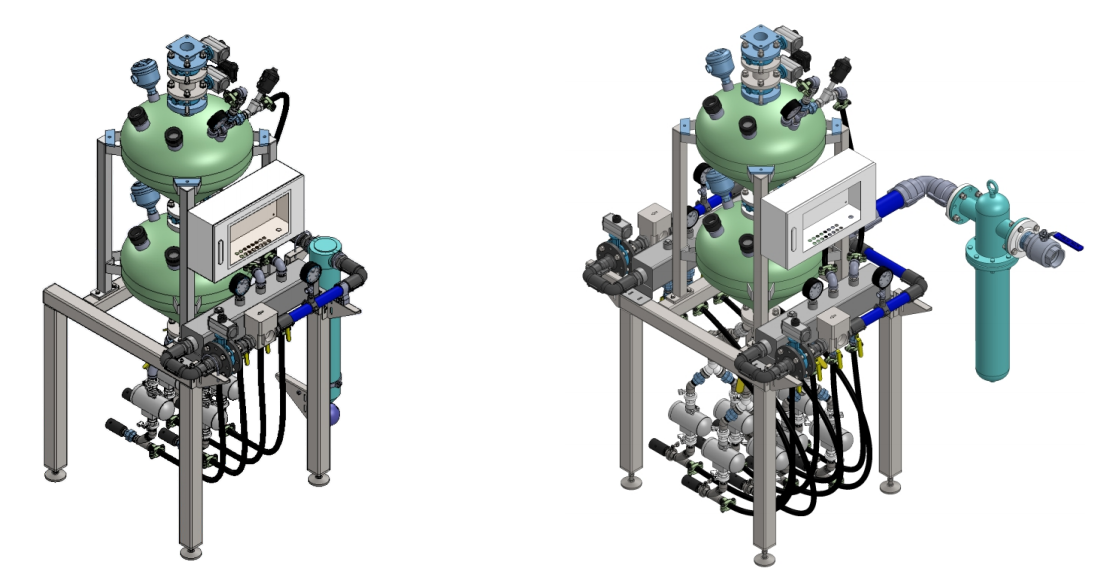

G Series Shot Peening Generation System Selection Table:
Model | G15 | G80 | G120 |
Pressure Tank Capacity | 15L | 80L | 120L |
Max. Number of Nozzles | 1 | 4 | 8 |
Maximum Pressure Drop Duration During Media Refill | 0.5 sec | 2 sec | 3 sec |
Shot Peening Pressure Control Accuracy | ±2% | ±2% | ±2% |
Shot Peening Flow Control Accuracy | ±5% | ±5% | ±5% |
Standard Complied With | SAE AMS 2430 | SAE AMS 2430 | SAE AMS 2430 |
High Safety · High Adaptability · Long Service Life
Every component within this series of shot peening generation systems is strictly designed in accordance with GB150-1998 (Safety Technical Supervision Regulations for Pressure Vessels) and SAE AMS 2432 (Shot Peening Standard for CNC Systems), and is engineered to industry-leading specifications.

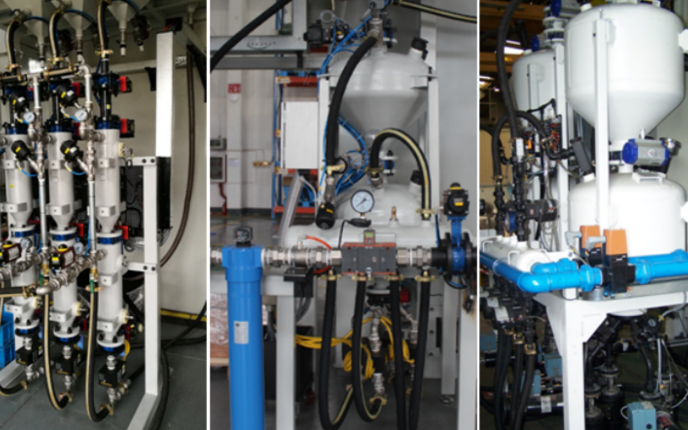

From the pressure vessel body, butterfly valves, oil-water separators, and level sensors to our precision abrasive flow control valves — all are optimized in design and selection to ensure high safety throughout the operation of the shot peening generation system.
